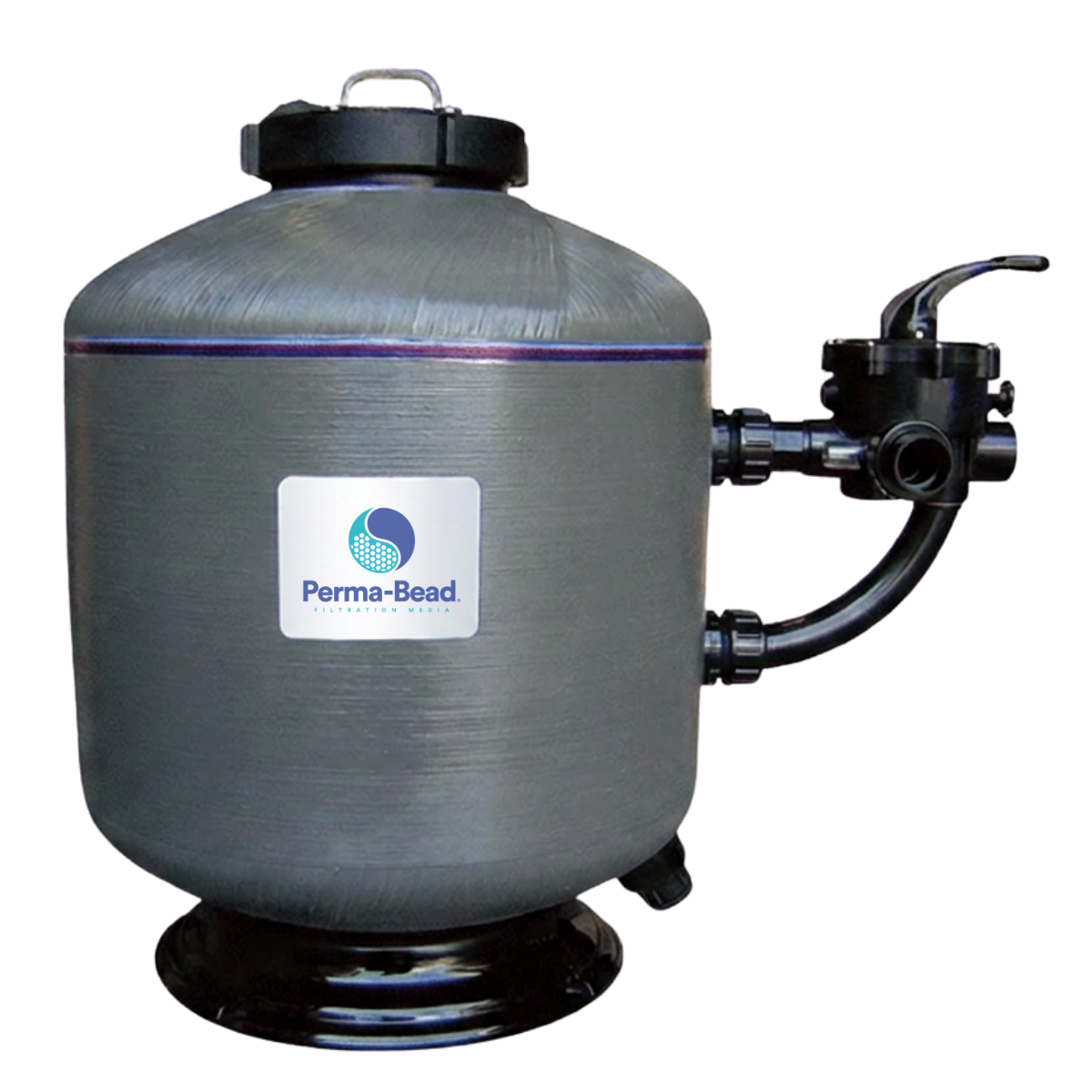

CSM-Series Perma-Bead® Filters
CSM-Series Perma-Bead® Media Filters are engineered for higher-capacity aquatic life support systems requiring efficient solids filtration under demanding operating conditions. Featuring a durable fiberglass vessel, side-mount valve configuration, and advanced Perma-Bead® Aquatic Filtration Media, CSM-Series Filters provide reliable filtration performance while maintaining excellent flow characteristics and operational efficiency. Available in flow rates from 27–106 GPM with 2–8.7 ft³ Perma-Bead® capacity.

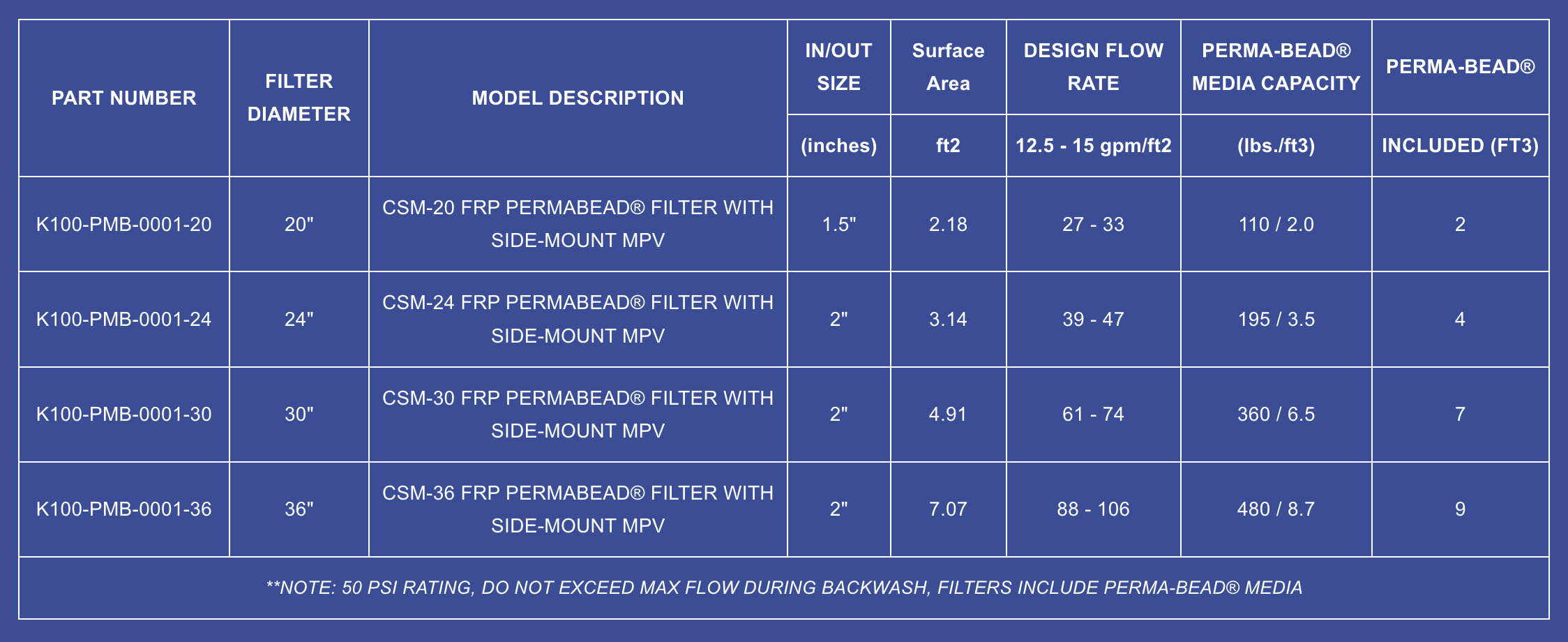

CSM-Series Filter Options:
| PART NUMBER | FILTER DIAMETER | FILTER DIAMETER | MODEL DESCRIPTION | IN/OUT SIZE | Surface Area | DESIGN FLOW RATE | PERMA-BEAD® MEDIA CAPACITY | PERMA-BEAD® |
|---|---|---|---|---|---|---|---|---|
| (inches) | ft2 | 12.5 - 15 gpm/ft2 | (lbs./ft3) | INCLUDED (FT3) | ||||
| K100-PMB-0001-20 | 20 | 20" | CSM-20 FRP PERMABEAD® FILTER WITH SIDE-MOUNT MPV | 1.5" | 2.18 | 27 - 33 | 110 / 2.0 | 2 |
| K100-PMB-0001-24 | 24 | 24" | CSM-24 FRP PERMABEAD® FILTER WITH SIDE-MOUNT MPV | 2" | 3.14 | 39 - 47 | 195 / 3.5 | 4 |
| K100-PMB-0001-30 | 30 | 30" | CSM-30 FRP PERMABEAD® FILTER WITH SIDE-MOUNT MPV | 2" | 4.91 | 61 - 74 | 360 / 6.5 | 7 |
| K100-PMB-0001-36 | 36 | 36" | CSM-36 FRP PERMABEAD® FILTER WITH SIDE-MOUNT MPV | 2" | 7.07 | 88 - 106 | 480 / 8.7 | 9 |
| **NOTE: 50 PSI RATING, DO NOT EXCEED MAX FLOW DURING BACKWASH, FILTERS INCLUDE PERMA-BEAD® MEDIA | ||||||||
About Perma-Bead® Filters
Cost-Effective Solution
Perma-Bead® filters have proven to be an economical choice for solids filtration in the aquatic life support industry. With their long lifespan and minimal maintenance requirements, these filters offer significant cost savings in the long run.
Uninterrupted Filtration
Unlike traditional sand media filters that can clog or channel over time, Perma-Bead® filters provide consistent and reliable performance. They are designed to handle organically loaded systems, ensuring consistent filtration even under heavy loads.
Permanent Media Solution
Permanent Media Solution: The name "Perma-Bead®" says it all. These filters are a permanent media solution that never needs to be replaced. This eliminates the hassle and expense of media replacement, making them a convenient and efficient choice for aquatic systems.
